MIL-PRF-49450/8A(CR)

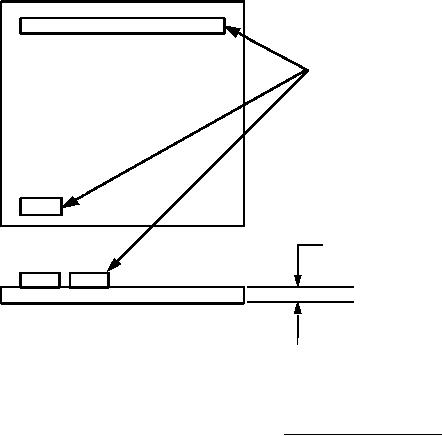

PAD PROJECTION WHEN COVER IS SECURED,
PROJECTION WILL BE IN CONTACT WITH
EACH VENTED FILLER CAP AND SHALL NOT
OPTIONAL
HINDER THE PROPER RELEASE OF GASES.
STYLES
MATERIAL: ELASTOMER (HOLD-DOWN PAD)
.035 MINIMUM
49450-3
FIGURE 7. Cover hold-down pad.
DRAWING NOTES:
1. All dimensions are in inches, unless specified otherwise.
REQUIREMENTS:
1. The battery's cell configuration shall conform to Figure 3 and Table 1.
2. The intercell connectors shall have part number stamped using 0.125 inch characters,
0.005 inch deep minimum before plating.
3. The diode assembly shall be formed with no evidence of cracking, have a torque range
for the 10-32 hexagonal head of 20 to 24 in-lbs.
4. The harness assembly shall use insulated wires resistant to the battery electrolyte. The
harness assembly shall be capable of withstanding the temperature and exposure of the battery
electrolyte without damage. The harness assembly configuration in the battery shall conform to
Figure 5 or 6. Location of center cell sense/low capacity cell sense connection on either the low
capacity cell terminals or adjacent terminals of equipotential is acceptable.
5. The battery shall use 19 cells and a low capacity cell.
6
