MIL-PRF-49450/8A(CR)
F
K
A
A
A
A
D/D1
I, J
A
C
A
A
E
B
A
A
A
C
E
A
A
A
A
D/D1
49450-3
H
G

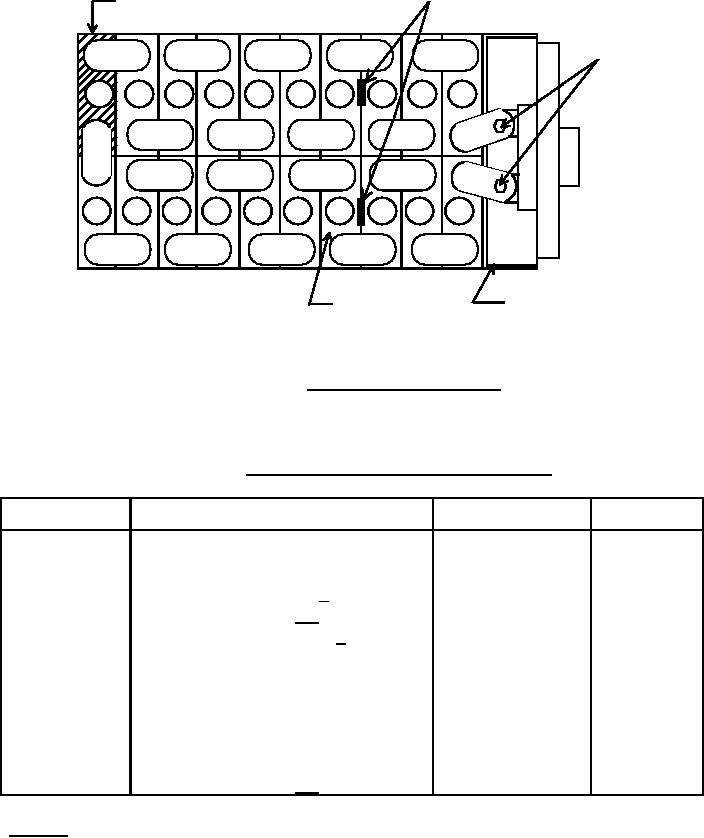

FIGURE 3. Battery strap configuration.
TABLE I. Referenced components listing for figure 3.
REF LTR
Description
Part Numbers
Quantity
A
Connector, Strap
M49450/1-1
14
B
Diode Assembly
M49450/2
1
C
Thermoswitch Assembly 1/
M49450/5-1
2
D
Thermistor Assembly 1,2/
M49450/5-2
2
D1
Connector, Insulated Strap 3/
M49450/1-3
2
E
Connector, Strap
M49450-1-2
2
F
Cell, Low Capacity
M49450/6
1
G
Cell
M49450/7
19
H
Partition, Metal (Removable)
-----
1
I
#10-32 Hexagonal Head Screw
AN3C3A
2
J
Belleville Spring
M49450/3
2
K
Thermistor Assembly 1,3/
M49450/5-3
2
NOTES:
1. Part of Harness Assembly
2. Only applicable to Method 1 Harness Configuration
3. Only applicable to Method 2 Harness Configuration
3
