MIL-PRF-49450/8A(CR)
J2
JI
+
REMOTE SENSE
G
(POSITIVE)
A
BATTERY SENSOR
THERMISTOR
NUMBER 1
CELLS 1 THRU 9
B
LOW CAPACITY CELL
C
1N1202RA
(-) AND CENTER
LOW CAPACITY CELL
DIODE
CELL SENSE
LOW CAPACITY CELL
H
(+) AND CENTER
CELL SENSE
E
BATTERY OVER-
2 THERMO-
TEMPERATURE
SWITCHES
CELL 11 THRU 20
SENSE
NC
F
J
BATTERY SENSOR
NUMBER 2
THERMISTOR
K
D
REMOTE SENSE
(NEGATIVE)
-
49450-3

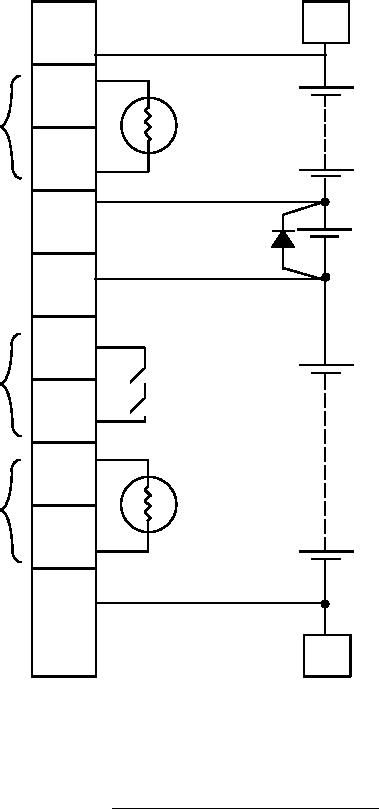

FIGURE 4. Wiring schematic diagram for battery.
