MIL-PRF-8565/15A
NOTES:
1. All dimensions are in millimeters.
2. Allow additional 4 mm length for cover.
3. Abbreviations used in this figure are inside diameter (ID), outside diameter (OD),
maximum (MAX), minimum (MIN) and radius (R).

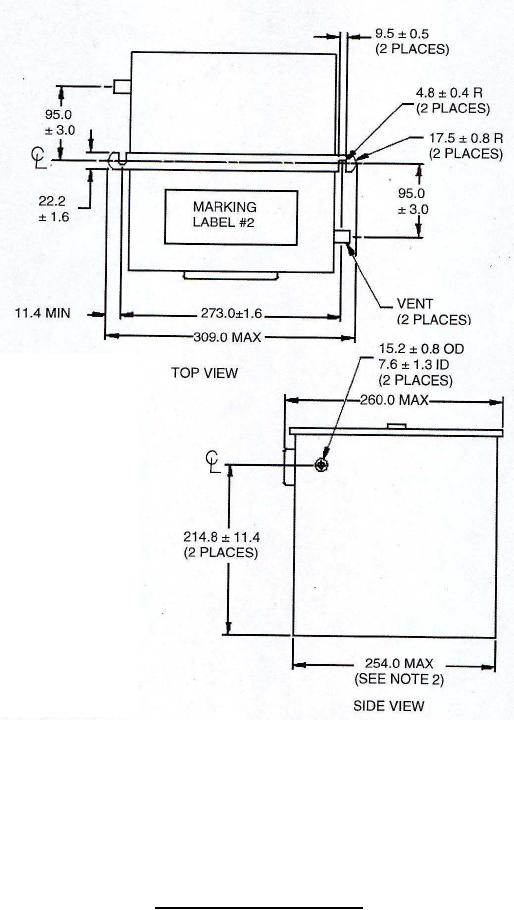

FIGURE 1. PIN D8565/15-1 dimensions-Continued.
7
