MIL-PRF-8565/15A
NOTES:
1. All dimensions are in millimeters.
2. Allow additional 4 mm width for cover.
3. Abbreviations used in this figure are maximum (MAX), minimum (MIN) and part
identification number (PIN).

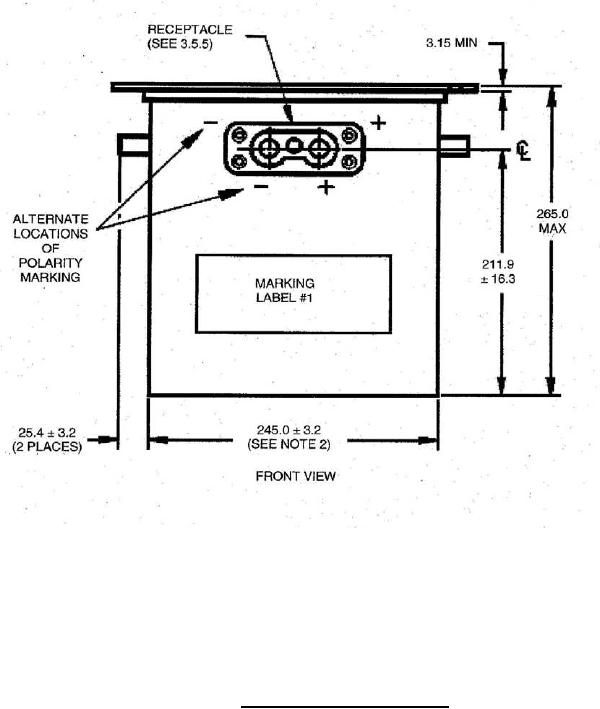

FIGURE 1. PIN D8565/15-1 dimensions.
