MIL-PRF-81757/9D
CONNECTOR STRAP ARRANGEMENT
REFERENCE
STRAP PART
DESCRIPTION
QUANTITY
LETTER
NUMBER
A
M81757/3-5
Connector, Strap
12
B
M81757/3-6
Connector, Strap
6
C
M81757/4-2
Connector, 2 Tab
2

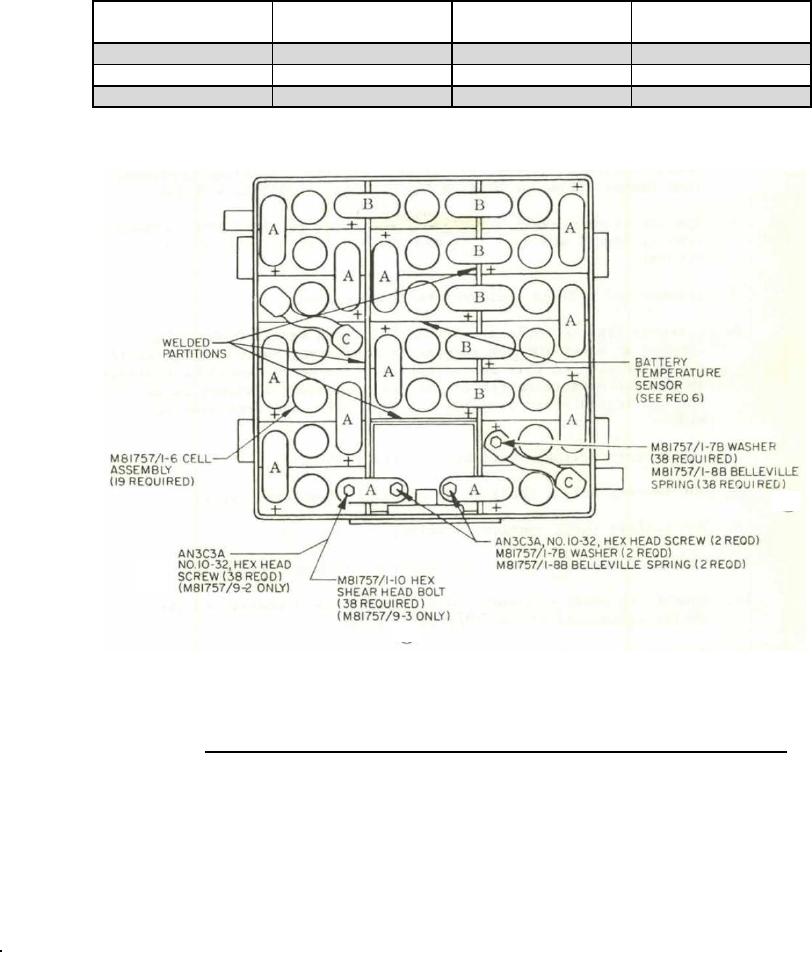

FIGURE 2. Layout (reference) of interior components for PIN M81757/9-2 and M81757/9-3.
