MIL-PRF-49450/5B(CR)
T H E R M O S W IT C H
.740 MAXIMUM
TO EXPOSED METAL SURFACE
OF THERMOSWITCH
.960 + .015
SEE NOTES 2, 3 AND 4
.500 MAXIMUM
.62 + .010
SCREW MOUNTED, # 6-32 HEXAGONAL NUT
.100 MAX
49450-2

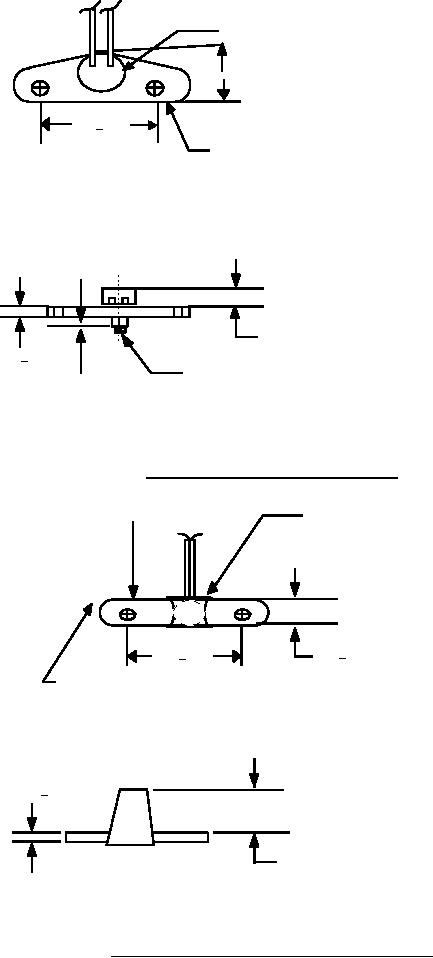

FIGURE 3. M4950/5-1 thermoswitch assembly.
CONNECTOR,
STRAP
THERMISTOR, MOUNTED
BY SHRINKABLE TUBING
SEE NOTE 5
.430 + .070
.960 + .015
SEE NOTES 2, 3 AND 4
.062 + .010
.500 MAX
49450-2
FIGURE 4. M49450/5-3 thermistor assembly (method 1).
4
