MIL-PRF-49450/4A(CR
REQUIREMENTS:
1. The vent plug shall be made of Polyamide or equal material. The Polyamide material
shall be compounded to be static proof and shall conform to ASTM D4066-82, Class PA811.
The vent shall be colored neutral.
2. The vent shall open at 6 ± 4 psi.
3. The vent plug shall withstand 7 in-lb of torque with no damage and provide an airtight
seal for the cell at a torque of 3.0 ± 1.0 in-lb.
4. The O-Ring shall be made of Ethylene Propylene Rubber or equal material.
DRAWING NOTES:
1. All dimensions are in inches, unless specified otherwise.
2. Slot dimensions - .050 ± .010 in. wide and .090 ± .010 in. deep.
3. Slit dimensions (minimum) -.060 in. high and .300 in. across.
4. Distance from end of thread to surface A shall be .035 ± .010 inch.
.208 + .005
49450-3
.070 + .003

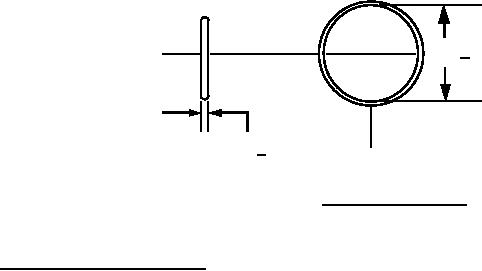

FIGURE 2. M49450/4-1 0-Ring.
Changes from previous issue. Marginal notations are not used in this revision to identify changes
with respect to the previous issue due to the extent of the changes.
