A-A-52499A
|
PIN Number |
A Length ±0.25 |
Stud Hole Size ±0.010 |
Conductor Size (AWG) |
Cable Diameter ±0.010 |
B |
C |
Reference Terminal Number Part (see note 2) |
|
A52499-10 A52499-11 A52499-12 A52499-13 A52499-14 A52499-15 A52499-16 |
24.75 27.75 29.75 40.00 42.00 12.75 14.25 |
.395 |
1/0 |
.672 |
.44 |
.81 |
7056732 |
|
A52499-17 A52499-18 A52499-19 A52499-20 A52499-21 A52499-22 |
15.25 22.75 8.00 17.00 24.00 34.00 |
.395
|
2/0 |
0.730 |
0.44 |
0.81 |
7056700.1 |
NOTES:
1. Dimensions are in inches. Unless otherwise specified, tolerances are ± 0.03.
2. Referenced terminal part numbers are as shown in drawing 7056700.
FIGURE 1. Electrical lead design, construction, and part numbers - Continued.
2.2.1 Cables. Cables shall be designed and constructed as shown in figure 2.
NOTE: Outside diameters of cables are listed in figure 1.

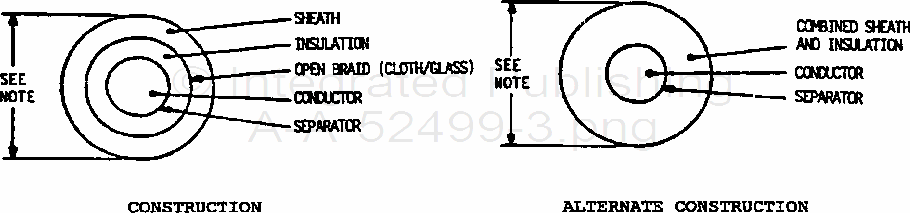

FIGURE 2. Cable design and construction.
2.2.1.1 Conductor construction. The conductors shall consist of individual strands. The conductors shall be continuous throughout their length except joints in individual strands shall be made by butt brazing or twisting strands together. Individual joints shall occur no closer together
