MIL-PRF-8565/6B(AS)

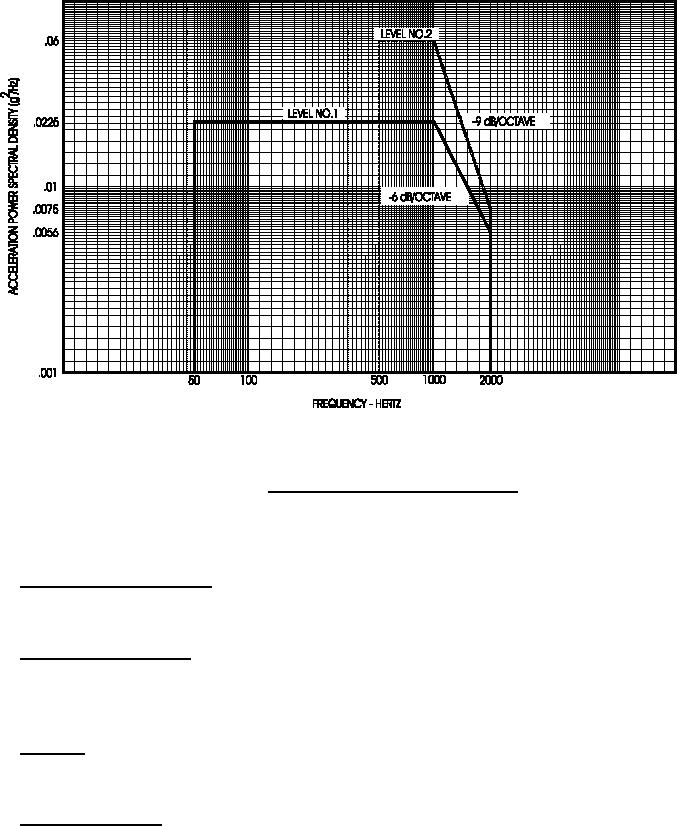

FIGURE 4. Random wave vibration test levels.
REQUIREMENTS:
1. Part or identifying number. The part or identifying number (PIN) of the battery covered by
this specification sheet shall be D8565/6-1.
2. Dimensions and weight. The dimensions of the battery shall be as shown on figure 1
contained in the specification sheet. The weight of the battery shall not be greater than 2.9
kilograms (see 3.8.3 and 4.5.3 of MIL-PRF-8565).
3. Capacity. The rated capacity of the battery shall be not less than 1.5 ampere-hours (Ah). See
3.8.6 as modified herein.
4. Aircraft installation. For installation in the aircraft, the battery shall be supported as shown
on figure 3 of MIL-PRF-8565. Vibration isolation may be provided to ensure that the vibration
level does not exceed the levels of the 3-year accelerated life test of 4.5.10. If vibration isolators
are used, sufficient sway clearance between the battery and the mounting structure shall be
provided.
4
