MIL-PRF-8565/1A(AS)
TABLE IV. Battery discharge values.
"Test step Discharge time Discharge current
"1
1.0 minute
1.8 amperes
"2
5.0 seconds
15.0 amperes
"3
30.0 minutes
1.8 amperes
C
L
FRONT VIEW
SIDE VIEW
1. ALL DIMENSIONS ARE IN MILLIMETERS.
2. MARKINGS:
#1 = BATTERY IDENTIFICATION MARKING
#2 = BATTERY CAUTION MARKING (SEE FIGURE
2 OF MIL-PRF-8565)
#3 = ELECTRICAL SCHEMATIC MARKING (SEE
FIGURE 2 OF THIS SPECIFICATION SHEET)

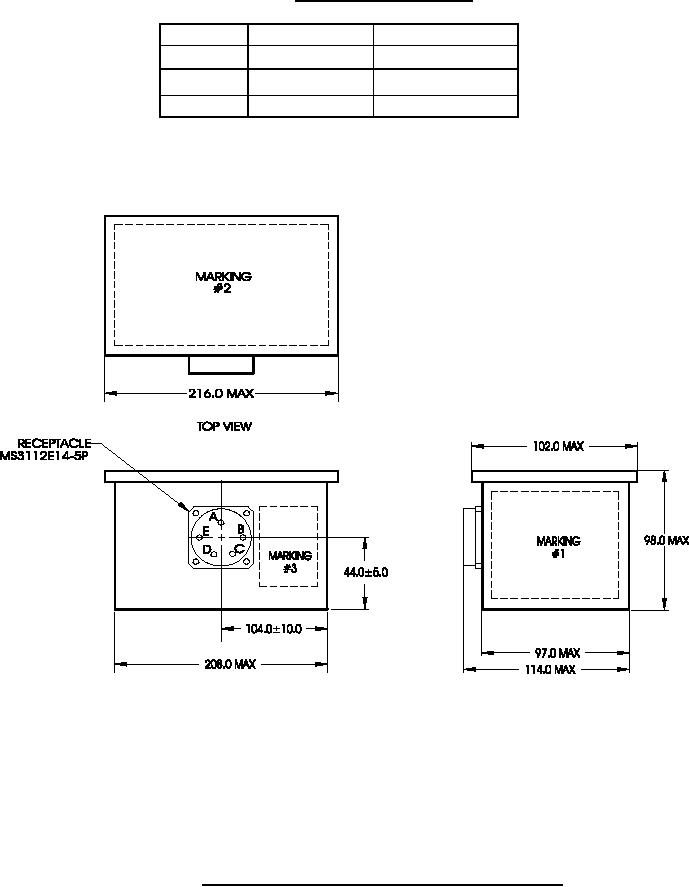

FIGURE 1. Dimensions and configuration for PIN D8565/1-2.
